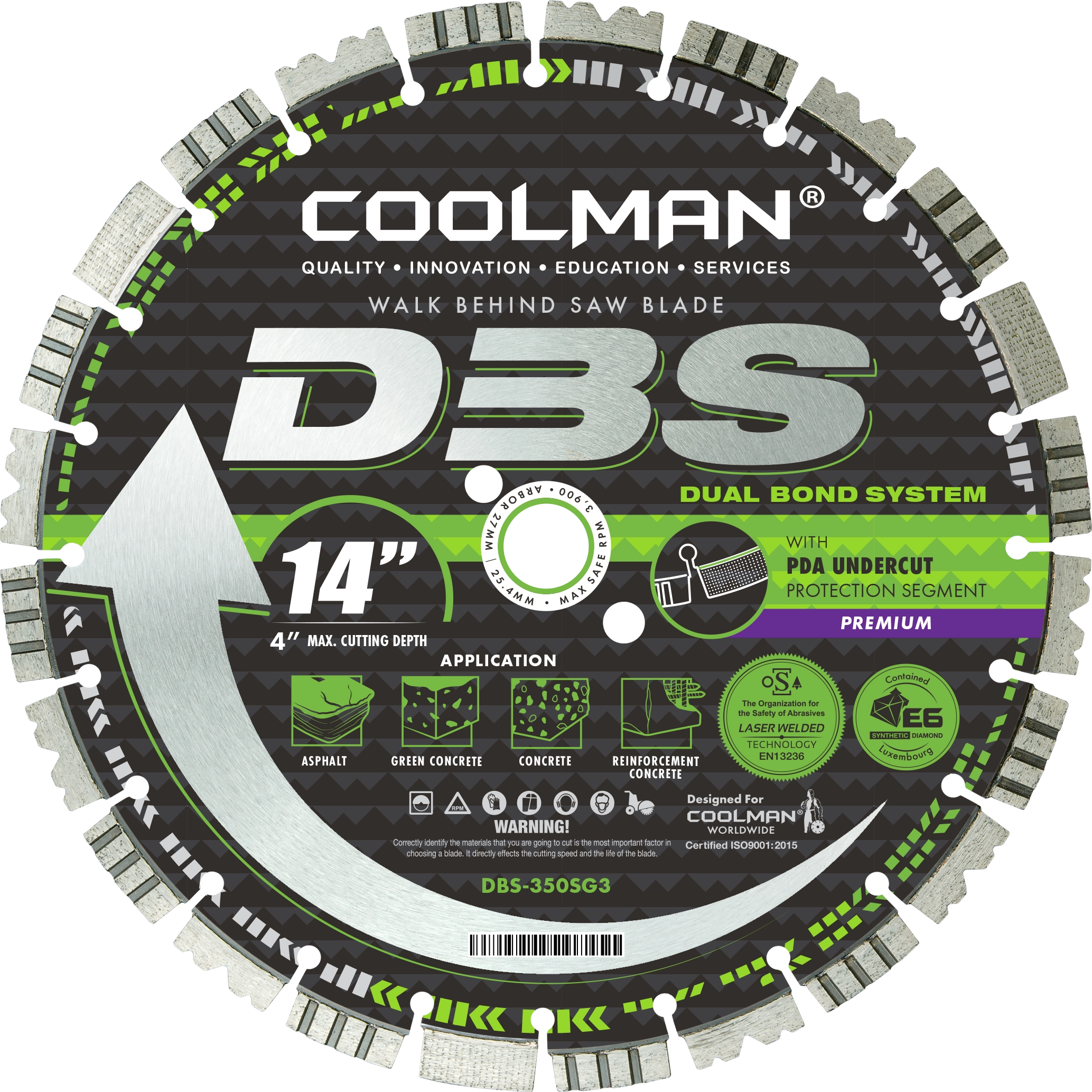

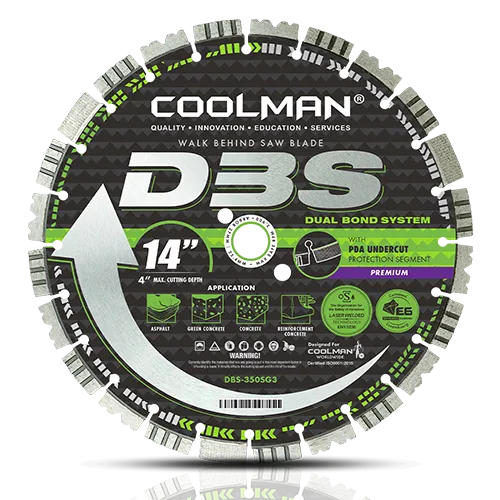

14″/Ø350mm DBS III ( NEW! )
3rd Generation DBS Series
The COOLMAN DBS Diamond Blade is one of the most popular and widely trusted choices for asphalt and road-cutting concrete applications. Since the launch of the first-generation DBS blade in 2014, it has gained strong recognition for its reliability and cutting efficiency.
Now, a decade later, in 2025, we are proud to introduce the 3rd Generation COOLMAN DBS Diamond Blade, featuring a remarkable 25% improvement in cutting performance. Engineered with the latest advancements in diamond technology and segment design, this new generation delivers faster, more precise cuts, extended blade life, and enhanced durability—ensuring superior efficiency and productivity for professional users.
Specification
Blade Diameter
14" / Ø350mm
Blade Contained
element SIX™ Synthetic Diamond, Metal Mixed Powders, Steel Core
Blade Process
Laser Welded
Blade Design
Slanted Key-Slot
Diamond Quality
High Diamond Concerntration, High Quality Element Six Made in UK
Arbor Size
25.4mm, 27mm
Segment Design
Crown Segment, PDA Segment, Turbo Segmented
Segment Thickness
3.3mm
Segment Height
12mm
Max Cutting Depth
4-1/2" / 115mm
Product Grade
Premium
Cutting Material
Asphalt, Brick & Block, Concrete Slab, Cured Concrete, Green Concrete, Paver
Certification
oSa Certified
Product ID
DBS350SG3
